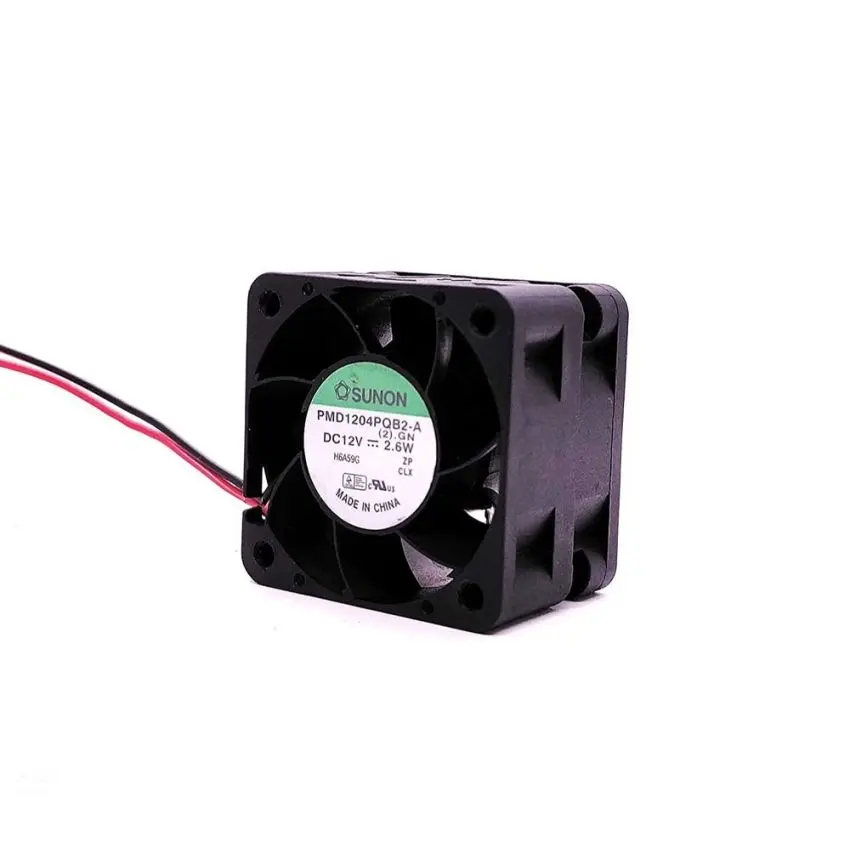

PMD1204PQB2-A Sunon axial fan DC12V

Manufacturer : SUNON

Type of fan : DC

Kind of fan : axial

Operating voltage : 6...13.8V

Fan dimensions : 40x40x28mm

Power consumption : 2.6W

Current rating : 0.22A

Fan efficiency : 25.99m3/h

Noise level : 40.5dBA

Kind of Bearing : ball bearing

Rotational rate/speed : 9200 (±10%)rpm

Current and power consumption tolerance : ±15%

Min. insulation resistance : 10MΩ

Impeller material : thermoplastic

Enclosure material : thermoplastic

Insulation class : E

Leads : 2 leads

Operating temperature : -10...70°C

Cable length : 300mm

Flammability rating : UL94V-0

Additional functions : Autorestart

Fan motor : brushless DC

Static pressure : 12.95mm H2O

Wire size : 28AWG

Weight : 40g
